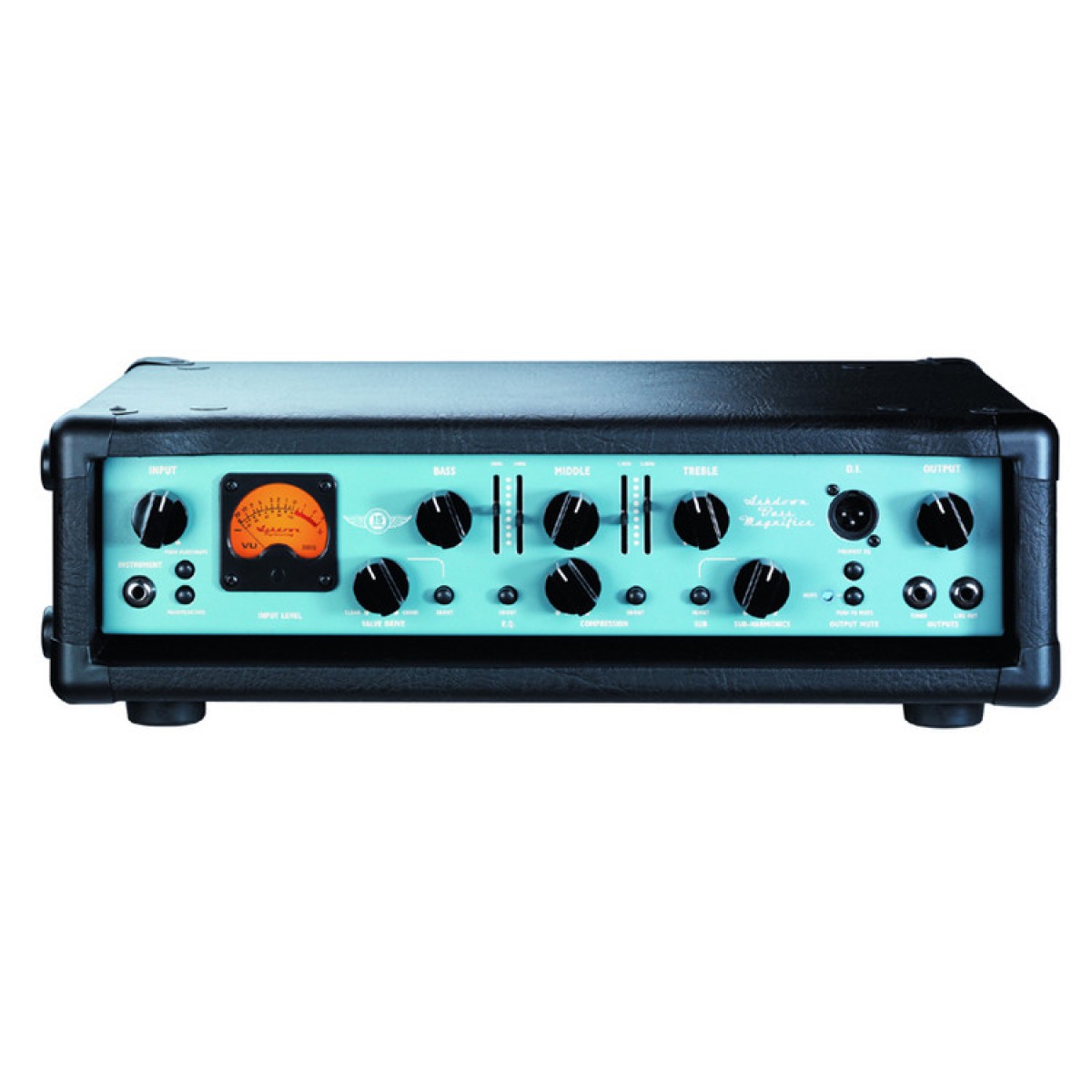

Ashdown ABM-500 EVO III Bass Amp Head

Full Description

The tone controls provide 20dB of cut and boost at 60Hz, 660Hz and 5kHz, while the sliders give 15dB cut and boost at 180Hz, 340Hz, 1.3kHz and 2.6kHz. A single input is switchable for passive and active instruments with a blend of solid state and dual triode tube preamps which can be preset and selected by footswitch.

The ABM 500 also features a footswitchable on-board compressor and an Ashdown sub-harmonic generator which tracks the main signal and reproduces it an octave lower. A level control allows you to add just the right amount of low-end reinforcement.

The upgraded power section has faster transient attack, more headroom and even less noise.

Click the button below to download a PDF manual for the Ashdown ABM500 EVO III Bass Amp Head:

Features/Specifications:

• Power Output (RMS): 575W
• Power Requirement: 230 / 115V
• Frequency Response: -3dB at 17Hz and 30kHz
• Speaker Outputs: Minimum impedance 4 Ohms
• High Instrument Input: Impedance 3.9m Ohms, input range 150mV - 20mV p-p
• Low Instrument Input: Impedance 10k Ohms, input range 300mV - 40V p-p
• Line Input: Impedance 22k Ohms, input level 0dBu nominal
• Sub Output: Impedance 1k Ohms, level 0dBu Nominal
• DI Output: 600 Ohms balanced, level 0dBu nominal
• Tuner Output: Impedance 22k Ohms, level 0dBu nominal
• Pre-Amp Tubes: 1 x 12AX7

EQ:

• Bass: +/-15dB @ 45Hz
• Middle: +/-15dB @ 660Hz
• Treble: +/-15dB @ 7kHz shelving
• Slider 1: +/-15dB @ 180Hz
• Slider 2: +/-15dB @ 340Hz
• Slider 3: +/-15dB @ 1.3kHz
• Slider 4: +/-15dB @ 2.6kHz
• Shape (Push Flat): +8dB @ 50Hz & 4kHz, -8dB @ 400Hz, filter slope - 6dB/octave

Effects Send/Return:

• Effects Send: Impedance 22k Ohms, level 0dBu nominal
• Effects Return: Impedance 22k Ohms, input level 0dBu Nominal
