Key Features
- Efficient Class-D mixing amplifier capable of providing you with 2 x 50W of power
- Built-in audio player with Bluetooth connectivity for wireless audio streaming
- USB port and SD card slot for quick and easy MP3/WMA/WAV playback
- Screw terminals provide simple connectivity for low-impedance speakers
- Rugged 19'' 1U rack-mountable housing provides easy installation options

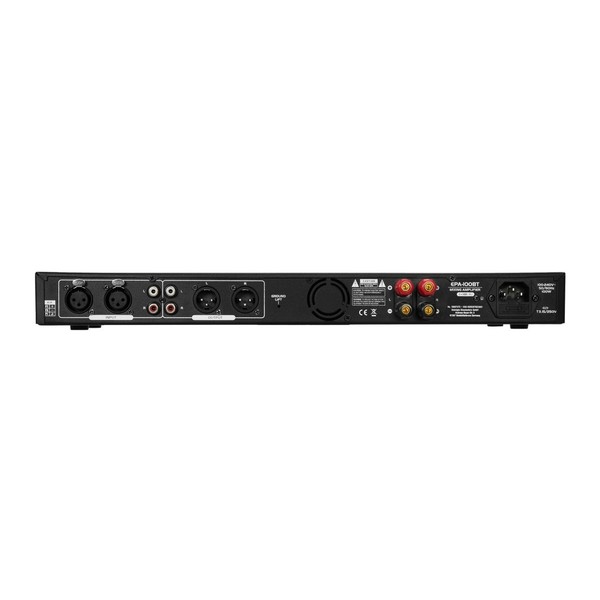

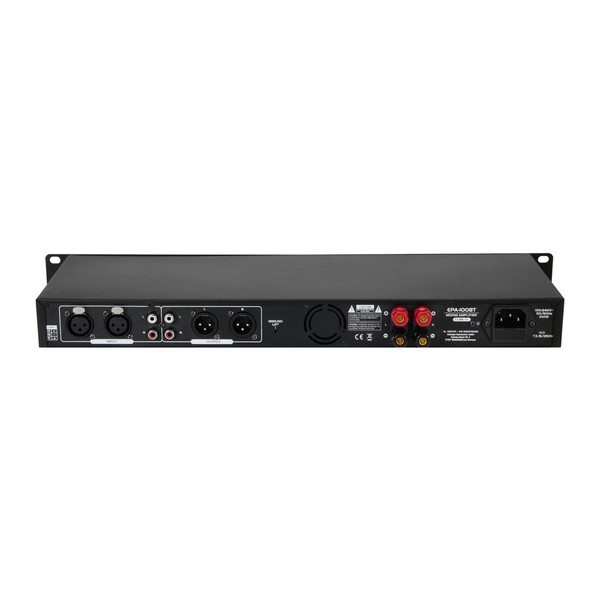

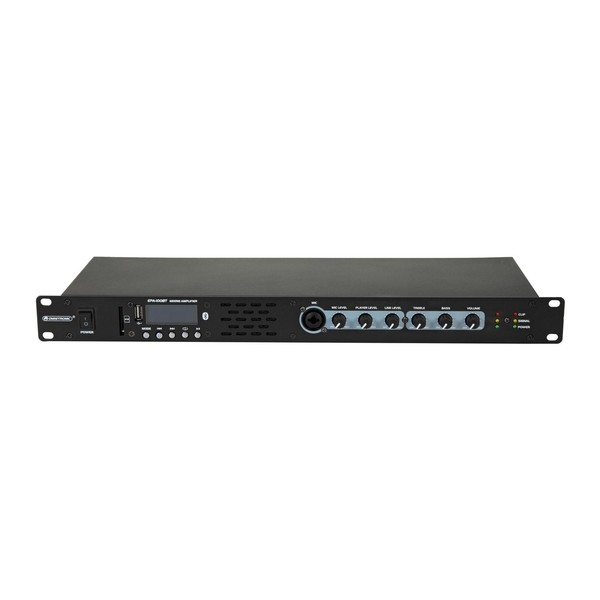

Omnitronic EPA-100BT Mixing Amplifier and Audio Player with Bluetooth Overview
Versatile and intuitive. The Omnitronic EPA-100BT is a flexible mixing amplifier with an integrated audio player. Utilising efficient Class-D circuitry, the amplifier section is capable of delivering 2 x 50W (peak) of power to your speakers. A diverse selection of connectivity lets you hook up your speakers and audio sources with ease.
The EPA-100BT can playback audio from USB drives, SD cards, or wirelessly streamed from your Bluetooth-enabled device. You can even connect a microphone. Connecting to and configuring your EPA-100BT is simple, so you can play your audio back with ease. Plus, with its rugged rack-mountable design, the EPA-100BT is an excellent choice for permanent installations.
Product Ref: 150114
Full Description
View Full DescriptionFeatures
- 19'' mixing amplifier with integrated audio player and Bluetooth connectivity
- 1U flat stereo mixing amp capable of providing 2 x 50W of power
- Built-in audio player with USB port and SD card slot
- Blue backlit LCD screen
- Integrated Bluetooth audio streaming
- Adjustable stereo line input via XLR and RCA jacks
- Adjustable microphone input on the front panel
- Controls for Volume, Bass, and Treble
- Signal, Clip, and Power indicators
- Stereo line output via XLR and RCA jacks
- Screw terminals for low-impedance speakers
- Ground lift switch protects against ground-related hum
- Limiter for overload protection
- Efficient Class-D circuitry
- Lightweight and low-profile design with switch mode power supply
- 1U 19'' rack-mountable housing
Specifications
- Output Power: 30W RMS (8 Ohms), 50W RMS (4 Ohms)
- Circuitry: Class-D
- Frequency Range: 20Hz - 20kHz
- Connections: 2 x screw terminal
- Audio Player: USB + SD + Bluetooth
- Available Storage Media: USB devices and SD(HC) cards up to 32GB
- Playback Format: MP3, WMA, WAV
- Inputs:
- Line: 3-pin XLR, Stereo RCA (balanced)
- Mic: XLR-1/4'' combo jack (balanced)
- Bluetooth Range: 10-metres
- Bluetooth Carrier Frequency: 2.4GHz
- Housing: 19'' rack-mountable (1U)
- Cooling: Fan
- Power Supply: 100-240VAC, 50/60Hz
- Power Consumption: 100W
- Power Connection: Mains input IEC connector (M)
- Dimensions: 48.3cm x 4.45cm x 21cm (W x H x D)
- Weight: 2.59kg
- Product Code: 10007078
