New Instant Light Shows (ILS)
DMX is daunting, but Chauvet DJ’s Instant Light Shows (ILS) isn’t. Using the new GigBAR Move + ILS or ILS Command as its core, ILS enables advanced, coordinated shows across multiple fixtures. So you can get a complete lighting ecosystem, without the complications.
Any ILS fixture can slave to the GigBAR Move + ILS or be controlled by the new ILS Command. Lights and effects will then work together, without the need for any programming. Just use automatic, sound-to-light, or manual control modes. And you can make adjustments to colour, speed and more as you go.
Please note: ILS functionality requires either the GigBAR Move + ILS or ILS Command (not included)
Efficient 2-in-1 system

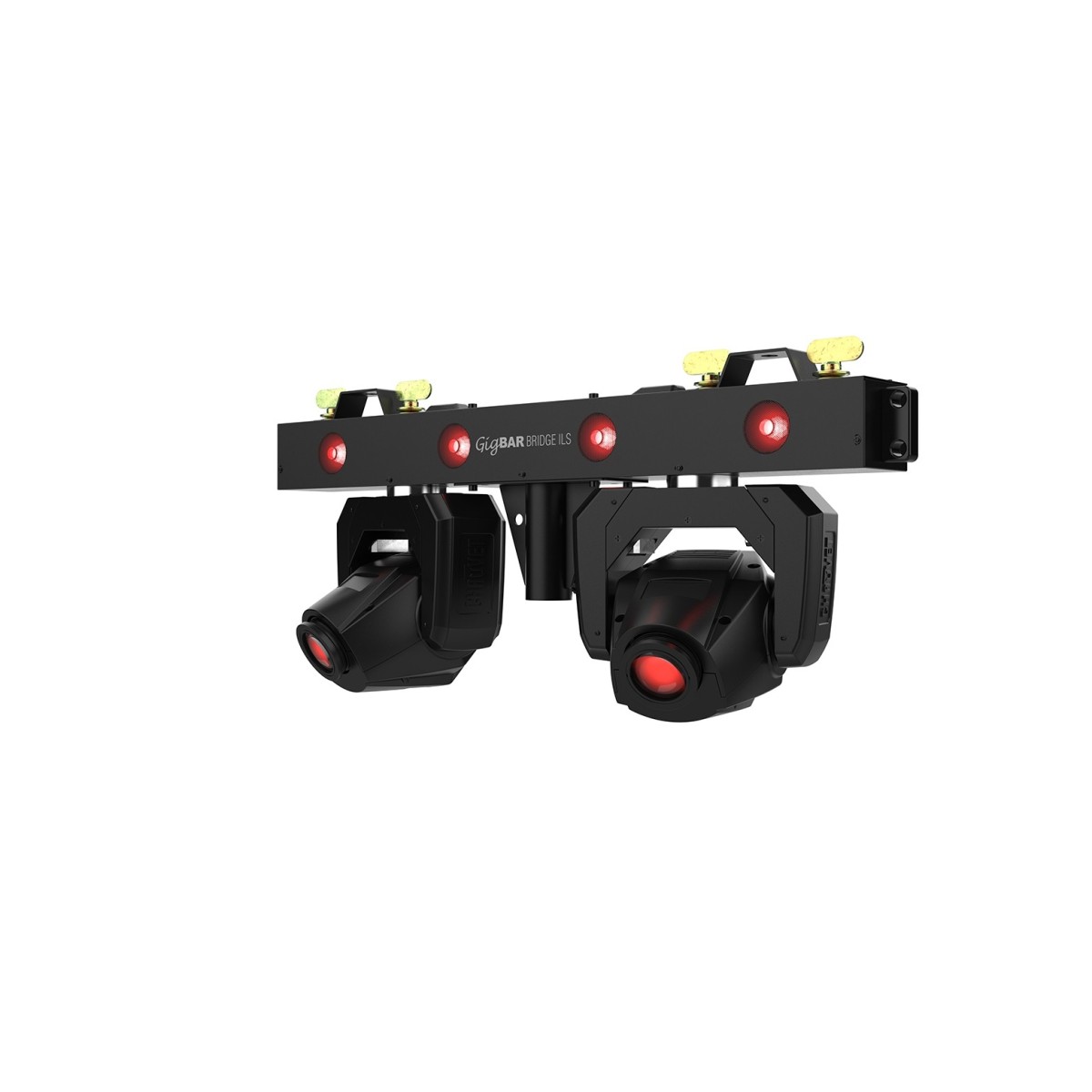

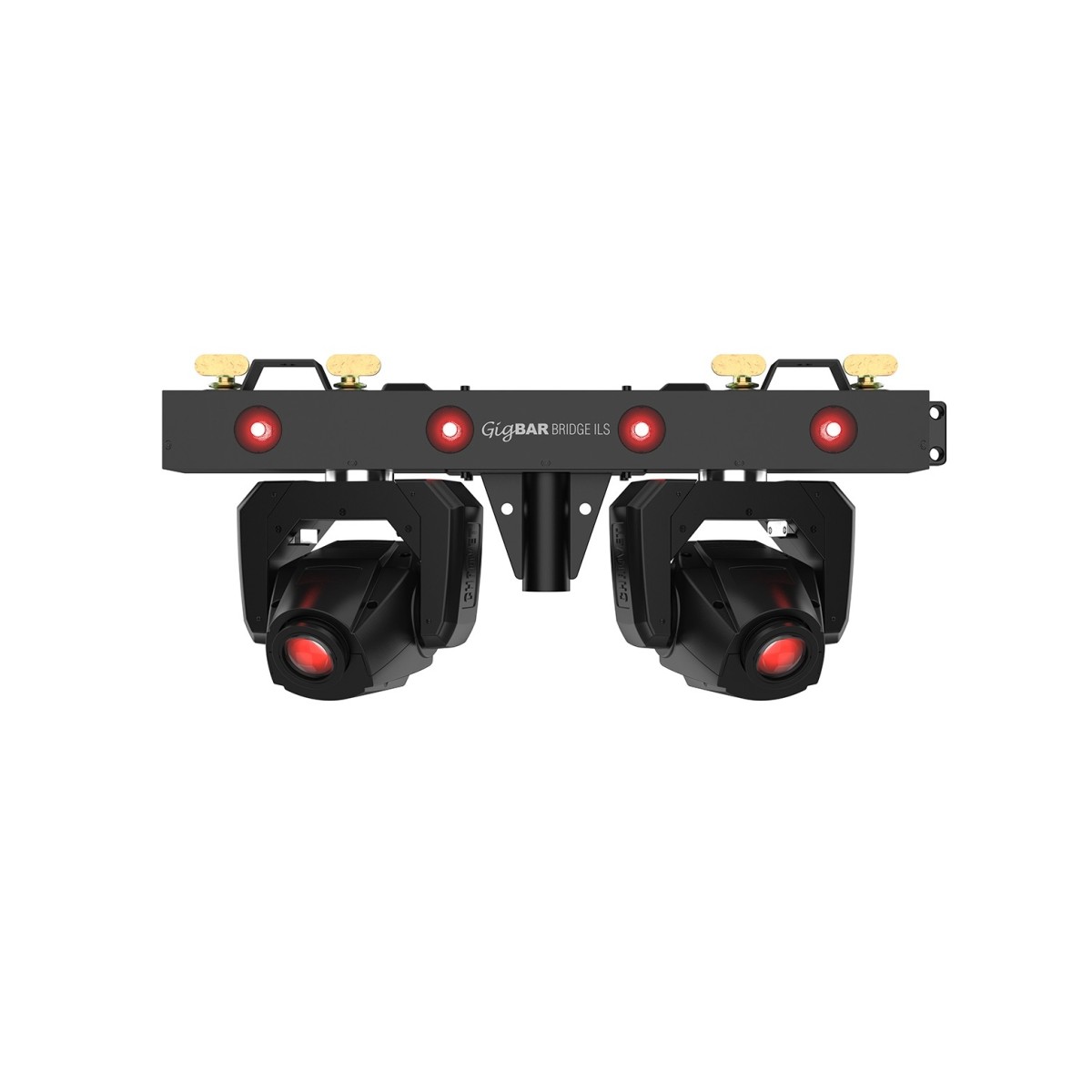

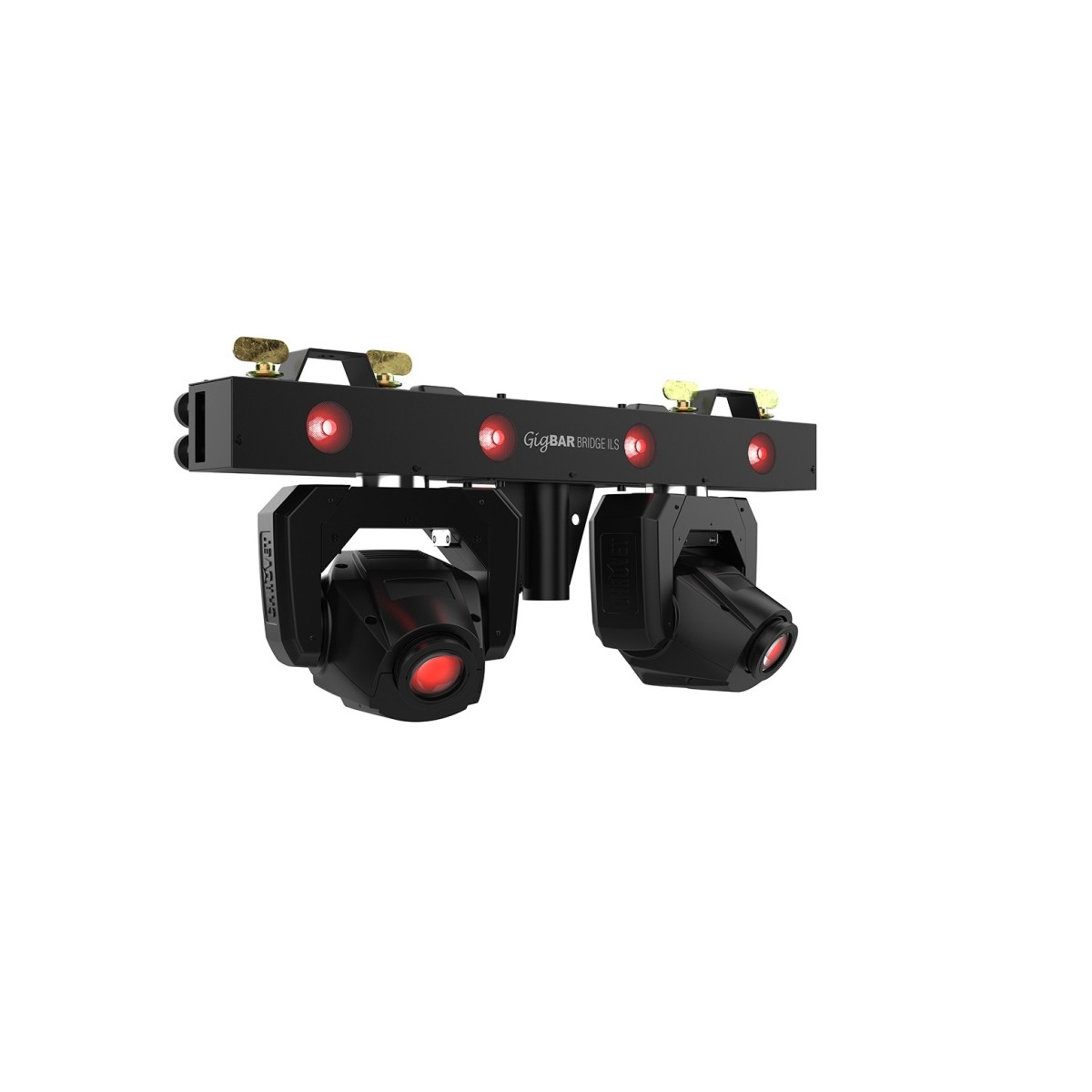

The GigBAR Bridge ILS combines moving heads and washes in a single, pre-mounted bar, offering a streamlined solution for lighting setups. This 2-in-1 system reduces the hassle of managing multiple fixtures, making it ideal for mobile DJs and event professionals seeking efficiency and convenience.
Secure fixture connection
Featuring a built-in locking system, the GigBAR Bridge ILS ensures quick and secure connection of multiple fixtures. This innovative design enhances stability and safety, providing peace of mind during performances and events.
Wireless control and communication
The integrated D-Fi transceiver allows for wireless DMX or ILS signal communication, eliminating the need for cumbersome cables. This feature provides greater flexibility in lighting design and simplifies setup, making it easier to achieve dynamic and synchronized lighting effects.
Versatile mounting options

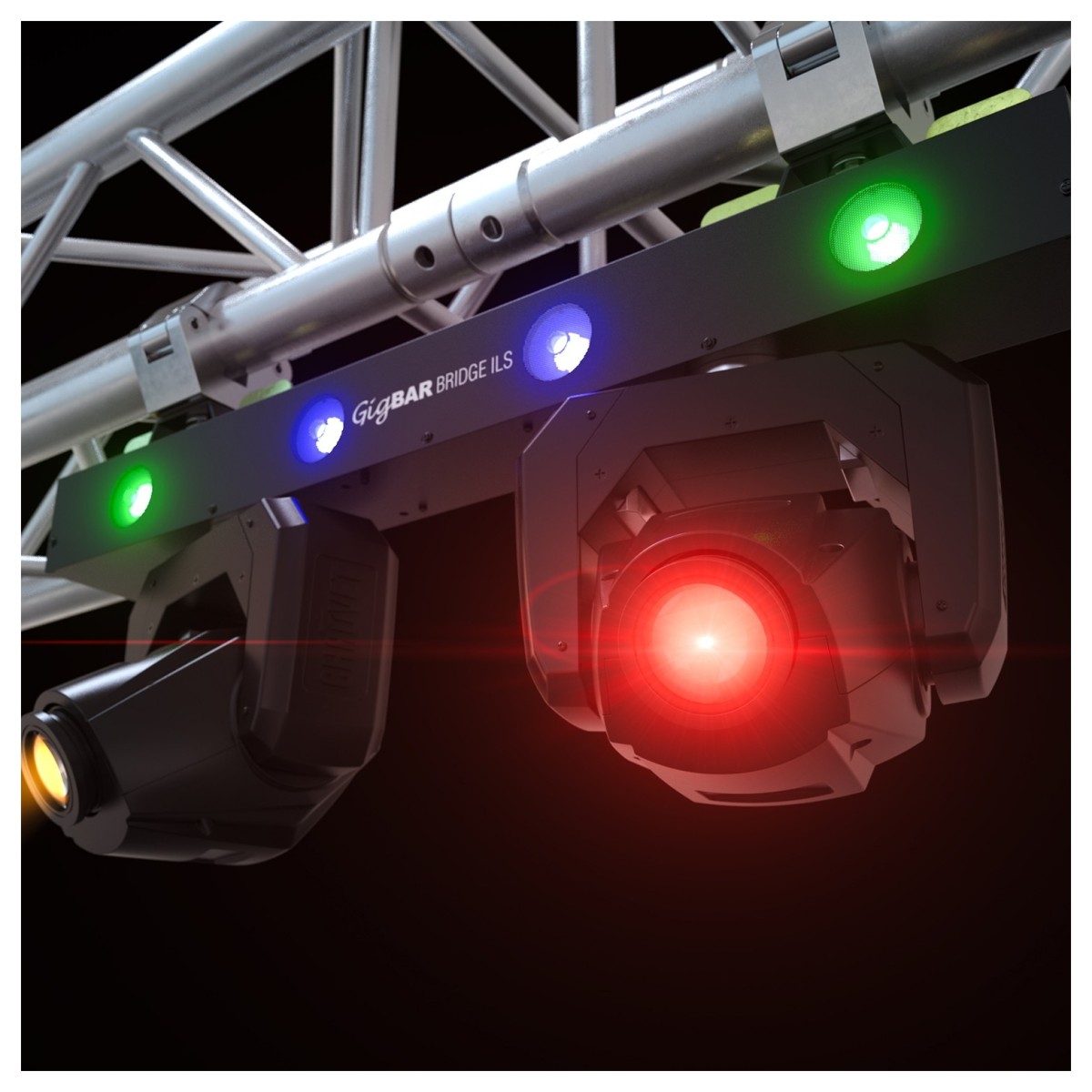

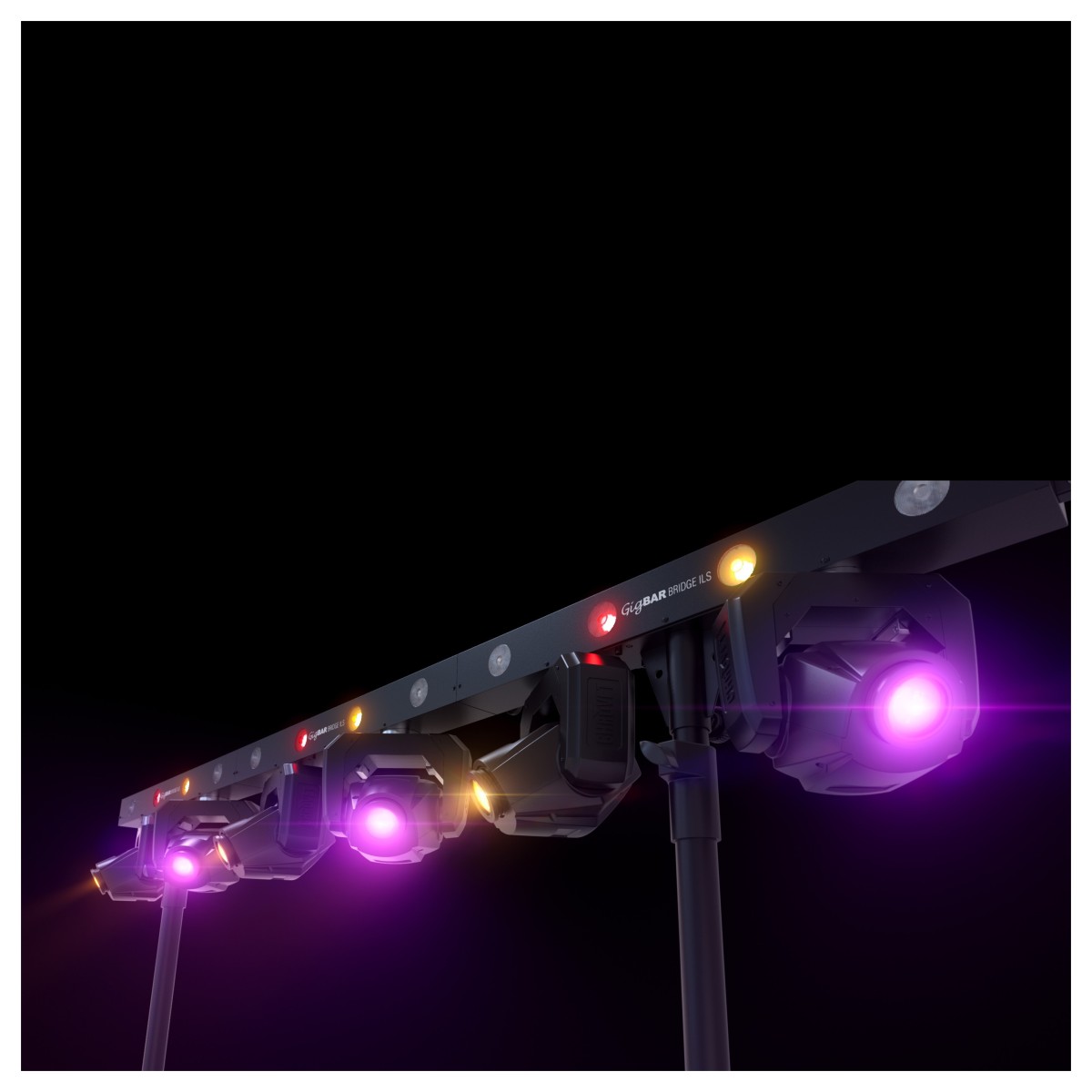

Designed for versatility, the GigBAR Bridge ILS comes with a removable bracket that allows for safe and secure mounting on trusses or mobile tripods. This flexibility ensures that the lighting system can adapt to various venue setups and event requirements. Additionally, the full-colour LCD display provides intuitive navigation and easy access to all functions, streamlining the programming process for users.
Features
- Lighting bar with two flexible moving head and was lights
- Quickly and easily add extra fixtures with locking attachment system
- Built-in D-Fi transceiver for wireless DMX or ILS transmission and reception
- Removable bracket mounts onto trusses or mobile tripods
- Full-colour LCD display for easy access to all features

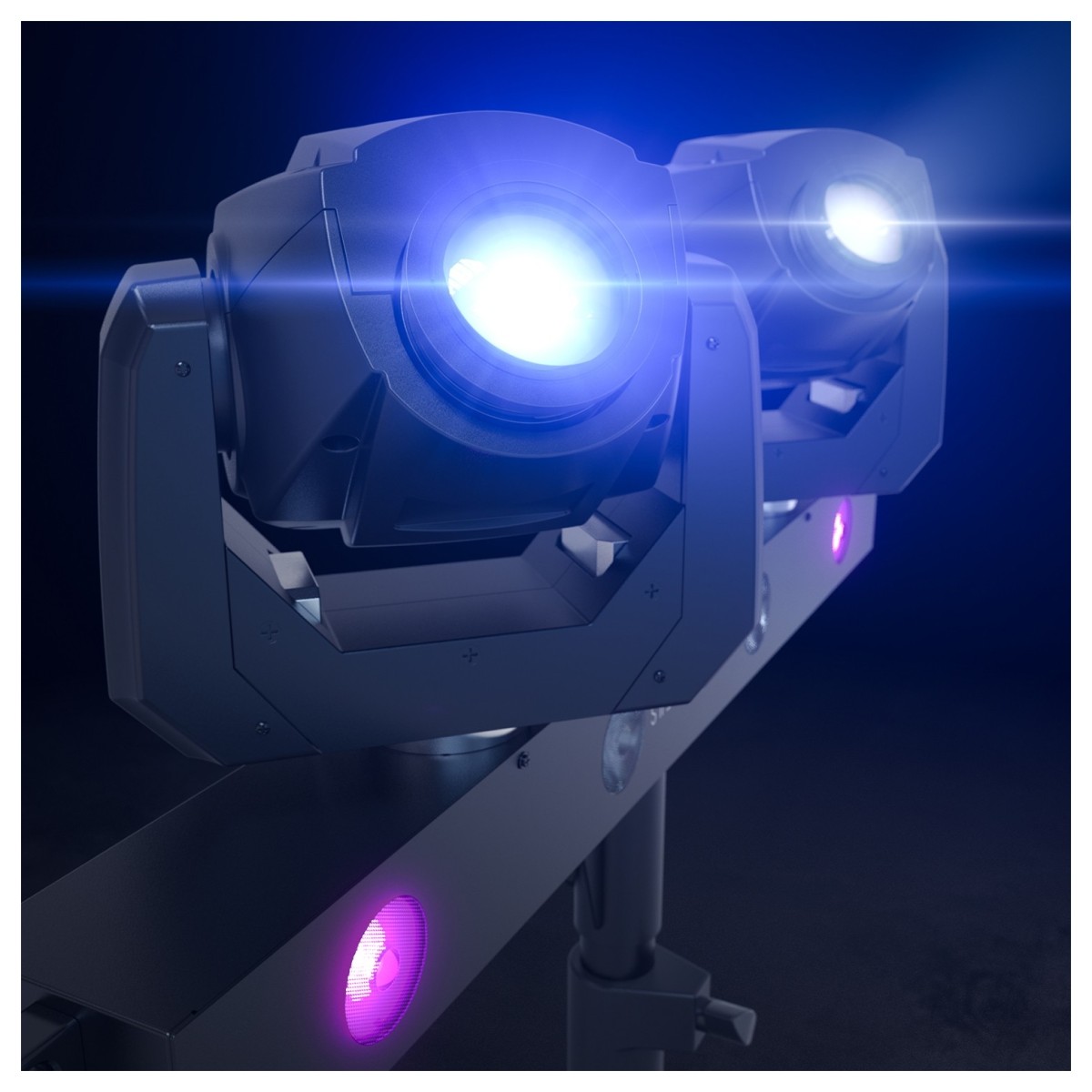

- Moving heads with separate colour and gobo wheels
- Totem Mode keeps moving heads fixed to dancefloor
- Power linking between fixtures for easier setup
- ILS-equipped for wireless control without the need for DMX
Specifications
- Product Code: GIGBARBRIDGEILS
- DMX Channels: 3, 16 or 46
- DMX Connectors: 3-Pin XLR
- Pan And Tilt: 270°/540°
- Colours (Moving Head): 9 + Open, Split Colours, Continuous Scroll At Variable Speeds
- Gobos (Moving Head): 9 + Open, Continuous Scroll At Variable Speeds
- Light Source (Moving Head): 1 LED (Cool White) 70W (3A), 50,000 Hours Life Expectancy
- Light Source (Wash): 4 LEDs (Hex-Colour RGBAW + UV) 10W (1.3A), 50,000 Hours Life Expectancy
- Strobe Rate: 0 to 20Hz
- Operating Frequency: 2.4 GHz
- Beam Angle (Moving Head): 16°
- Beam Angle (Wash): 22°
- Field Angle (Wash): 38°
- Illuminance (Moving Head): 7,594 Lux @ 2 m (Per Head)
- Illuminance (Wash): 375 Lux @ 2 m (Per Section)
- Power Linking: 8 Units @ 120 V; 13 Units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
- Power And Current:
- 191 W, 1.5 A @ 120 VAC, 60Hz
- 175 W, 1 A @ 230 VAC, 50Hz
- Fits Tripod Sizes: 1.5 in (37.4 mm)
- Max Unobstructed Distance (D-Fi): 600 ft (183 m)
- Optional Controllers: RF, Footswitch, ILS Command
- Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
- Weight: 18.6 lbs (8.4 kg)
